There are various types of breadboards such as full, half, and mini-sized, each catering to different project requirements and constraints.
The full-size breadboard is the standard-size board approximately 17 cm in length. The large circuits can be easily created on this full-size breadboard. Half-size breadboards are approximately half the length of full-size breadboards, usually around 8.5 cm. These breadboards are suitable for applications where the space is limited. The last type is a mini-sized breadboard, even smaller than half-size breadboards, typically measuring around 3.6 cm long.
In this article, we delve into the characteristics and applications of three common types of breadboards: full-size, half-size, and mini-sized.
Types of breadboard
A breadboard is a fundamental tool in electronics for designing and testing various circuits without soldering the components.Â
It consists of holes arranged in a grid, usually with metal clips underneath each hole. These clips allow you to insert and connect electronic components without soldering easily.
The breadboard is a convenient option for beginners but it is also used by hobbyists, students, and professionals for building and testing circuits quickly and without the permanence of soldering.

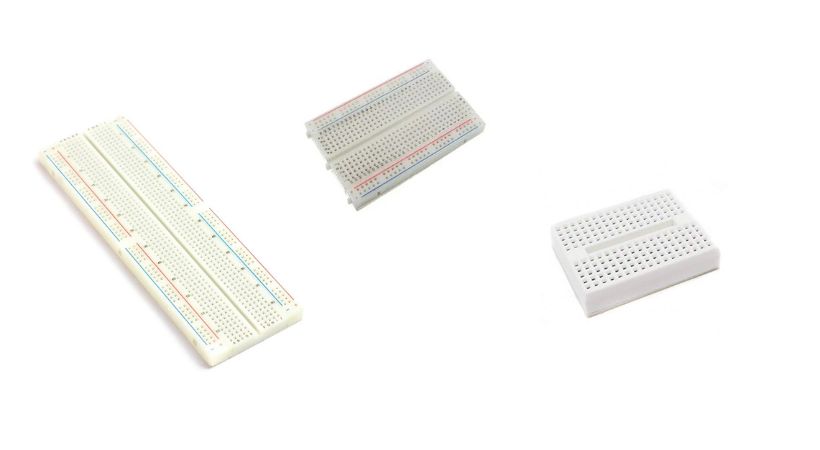

There are various types of breadboards depending upon the size the breadboard has three types: Full-size, half-size, and mini-size breadboard.
Let’s discuss each type in detail for a better understanding that which breadboard will be suitable for your project.
Full-size breadboard

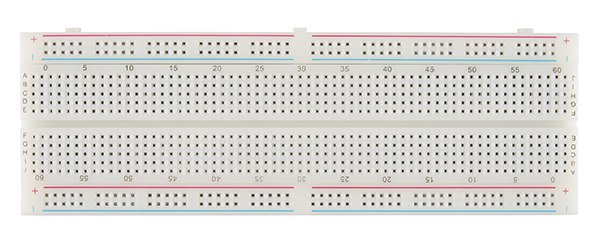

The full-size is the most widely used type because of its huge area and versatility. The board is Typically measuring around 17 cm in length, a full-size breadboard consists of approximately 830 tie points.
The points are the points where a component can be inserted. This generous size of the full-size breadboard is suitable for complex circuits with various components.
The board features multiple power rails, typically labeled as (+) and (-), running along the length of the breadboard, facilitating easy distribution of power to various components.
Full-size breadboards reduce the possibility of unintentional disconnections or short circuits during prototyping because of their bigger size and more connecting spots.
There are various applications of full-size breadboards. It can be used by hobbyists to create prototyping DIY projects, such as LED displays, audio amplifiers, sensor interfaces, and microcontroller-based systems.
These are also used in educational institutes in classrooms, laboratories, and workshops for teaching electronics principles and conducting hands-on experiments.
The full-size breadboard has limitations these are larger and less portable than their smaller counterparts, making them less suitable for projects with space constraints or for prototyping on the go.
Half-size breadboard
Half-size breadboards offer a compact and versatile platform for electronics prototyping, balancing a reduced footprint with sufficient space for experimenting with circuits.
Half-size breadboards feature the same standard layout as full-size breadboards, with rows of terminals arranged in a grid pattern.
It has multiple power rails labeled with (+) and (-). The power distribution is facilitated by these power rails.

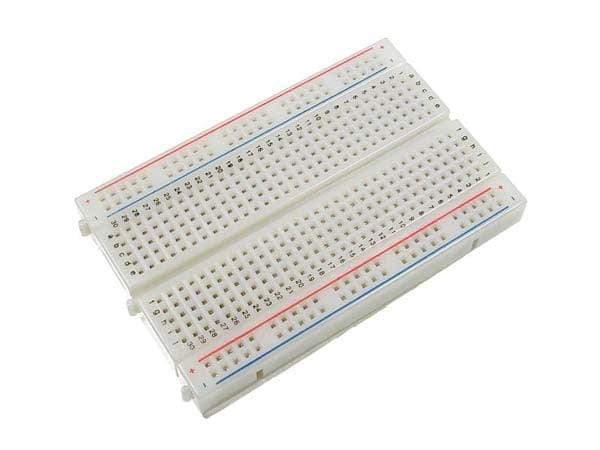

These boards are approximately half of the full-size breadboard, it have around the length of 8.5 cm. This compact design makes them suitable for projects where space is limited or where portability is desired.
The half-size breadboard as compared to the full-size board has fewer rows but still offers sufficient space for prototyping smaller circuits.
Half-size breadboards are ideal for prototyping small to medium-sized electronic projects, such as simple sensor interfaces, basic Arduino circuits, LED displays, and low-to-medium complexity circuits.
These are also used in different educational institutes and hobbyists and professionals use them for prototyping.
The limitation of the half-size breadboard is its compact size, half-size breadboards have a reduced prototyping area, which means you can’t design larger and more complex circuits on it.
It also offers fewer connection points for components, potentially restricting the number of components that can be simultaneously connected.
Half-size breadboards are a useful tool for small- to medium-sized electronic project prototyping because they combine functionality and compactness in just the right amount.
Mini-size breadboard
The mini-size breadboard is the smallest version of the breadboard. It provides a compact and versatile solution for prototyping electronic circuits in tight spaces or on-the-go applications.
Despite their small size, these breadboards offer a functional platform for experimenting with a variety of electronic components.

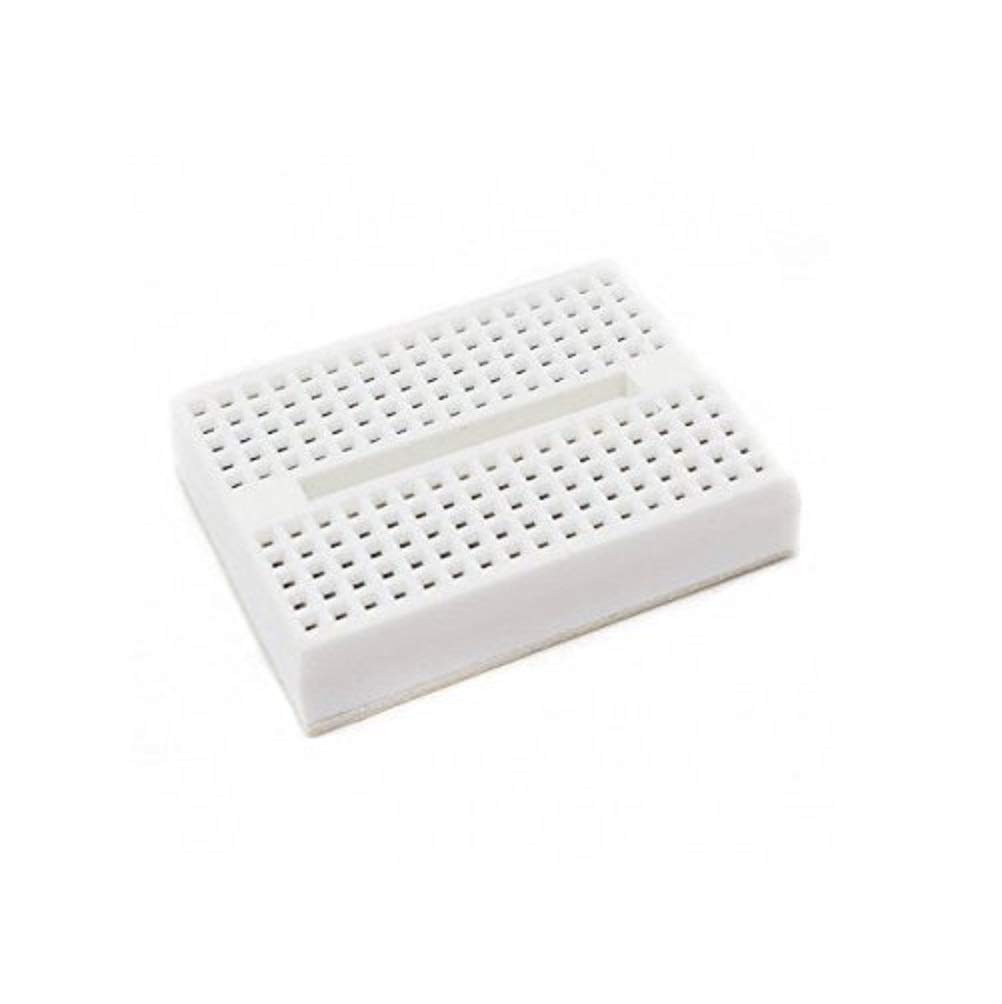

Mini-sized breadboards feature a miniature form factor, typically measuring around 1.8 inches (approx. 4.5 cm) in length. Due to the small size, the mini-size breadboard has 170 tie points for the components to insert.
It typically does not have integrated power rails, it lacks power rail due to its compact and small size.
The projects where the space is constrained the mini-size breadboard will be useful. For the small project using a full-size breadboard is not a good thing.
You can also use a mini breadboard for different small DIY projects.
The primary limitation of mini-sized breadboards is their limited prototyping area. While sufficient for small circuits with a few components, they may not accommodate larger or more complex projects that require additional space for components and connections.
Mini-sized breadboards offer a compact and versatile solution for prototyping electronic circuits in constrained spaces and also provide a functional environment for various testing.
Conclusion
Before the permanent connections, the breadboard is an essential tool to provide you with an environment where you can test your circuit performance.
Breadboards come in various sizes to accommodate different prototyping needs and preferences. It can be full-size, half-size, and mini-size.
Half-size breadboards are a more portable option for smaller circuits, while full-size breadboards provide enough space and stability for medium- to large-scale projects.
Conversely, mini breadboards work well in extremely compact applications where there is a limited amount of space.
By understanding the characteristics and applications of each type of breadboard, electronics beginners and professionals can choose the most suitable option for their prototyping circuits, ensuring efficient and effective circuit experimentation and development.
This was all about the types of breadboard, I hope it will be helpful.
Thank you and have a blessed life…
